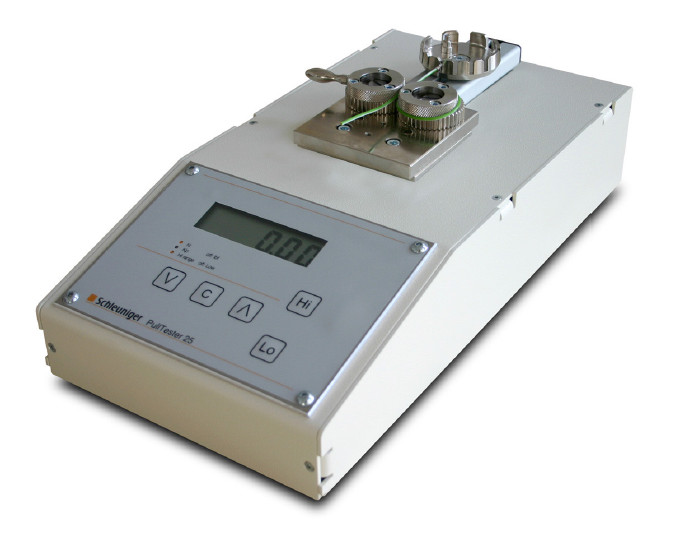

The PullTester 25 is a dual-range, motorized benchtop device for measuring pull forces of crimp connections, welded connections or many other possibilities. The dual-range capability provides greater accuracy on a broader range of wires than single-range pull test devices. The PullTester 25 is specially suited for quality assurance in a production environment. Measuring Range Standard: 0 – 500 N and 0 – 1000 N (0 – 110 lbs. and 0 – 220 lbs.) Other variations possible Units of Measure Newton (N), Kilopond (Kp), Pound (lbf) Display LCD 6-digit Applied Force Accuracy 0.2% of full scale (500 N/110 lbs.: ±1 N/0.22 lbs. or 1000 N/220 lbs.: ±2 N/0.44 lbs.) Stroke Max. 43 mm (1.69_) Pulling Speed 2 speeds: 50 or 100 mm/min. (1.97 or 3.94”/min.) Optional: 25 or 50 mm/min (0.98 or 1.97“/min) Pulling Modes Pull + Break Job Memory Not available Monitoring Device display output; Optional WinCrimp Basic software for visual force-time graph on a PC for evaluation with simple transfer capability to Microsoft® Excel. Safety IP20 Interfaces RS 232 Network In combination with crimp force monitor and crimp-height measurements device via WinCrimp software. Only one device with RS 232 network. Multiple devices with RS 232-TCP/IP adapters. Options In combination with crimp force monitor and crimp-height measurements device via WinCrimp software. Only one device with RS 232 network. Multiple devices with RS 232-TCP/IP adapters. Dimensions (L x W x H) 180 x 130 x 380 mm (7 x 5 x 15”) Weight 8 kg (18 lbs.) CE-Conformity The PullTester 25 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
