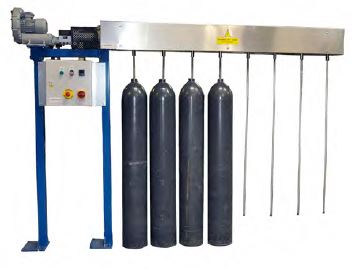

(M283) DRYING UNIT FOR 4 GAS CYLINDER

supplied complete with: - electric air-heater, blower, ejector (M258), - flexible metal hot air conduits (OD 17 mm) - electric control box with timers for drying time and cooling time for the heater. - manifold insulated with mineral wool and covered with aluminium plate. Capacity: 4 gas cylinders Cylinder diameter: 0-260 mm Cylinder height: up to 1700 mm Power requirement: Heater: 3x380-440 V, 50/60 Hz, 5- 6,7 kW , Blower: 3x380-415 V, 50/60 Hz, 250 W, 1200 l/min. The drying time can be reduced considerable with dry nitrogen is connected to the blower. Drying capacity: 12-24 cylinders / hour (depending upon ambient conditions such as atmospheric humidity, cylinder internal condition, water temperature and room temperature). ================================= Optional fitting not included in quotation: M254-260-811 Temperature controller, to be used when drying aluminium cylinders M254-256 drying tubes with small diameter, Ø10 mm. Lenght 600 mm. (to be used with M549) M254-549-004 portable stand to enable drying of short / small cylinders, will also support cylinders with round bottom M254-109-000 (S2449) Inlet filter,10 micron for drying unit M254-254-495 Bracket with 4 wheels för transportation, of a portable drying unit
