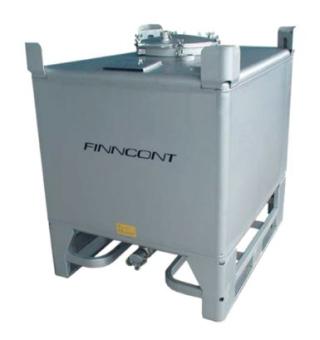

CF1000, MHC D400, DN50 & DN1000 Flanges

according to drawing T63030 and technical specification Product CF-1000 Drawing T63030 Nominal volume 1000 liters Material AISI 304, s=2,0mm Surface treatment Acid bated smooth satin finish Pallet material AISI 304, s= min. 2,0mm Manhole cover D400 with 6 swing bolts and EPDM gasket Fittings on MHC 1” twin act pre / vac vent in AISI 316 with FPM seal Fittings on top 1 x x DN50 flange 1 x 1 x DN100 flange Bottom discharge valve: 2” 2 pcs ball valve in AISI 316, full straight port, seal in PTFE, fitted with a 2” male cam lever coupling in AISI 316 and a dust cap in PP. Other: Earth strap Dimensions 1225 x 1025 mm, h= 1260 mm Approval UN 31A Max. specific gravity 2,2 kg/dm³ Max. operating pressure 0.1 bar Stacking / handling: not stackable when full / with crane from corners with forklift or pallet truck from all four side
