Polyp Grab HP30-140_P with Hydraulic Units 7,5kW – hanging

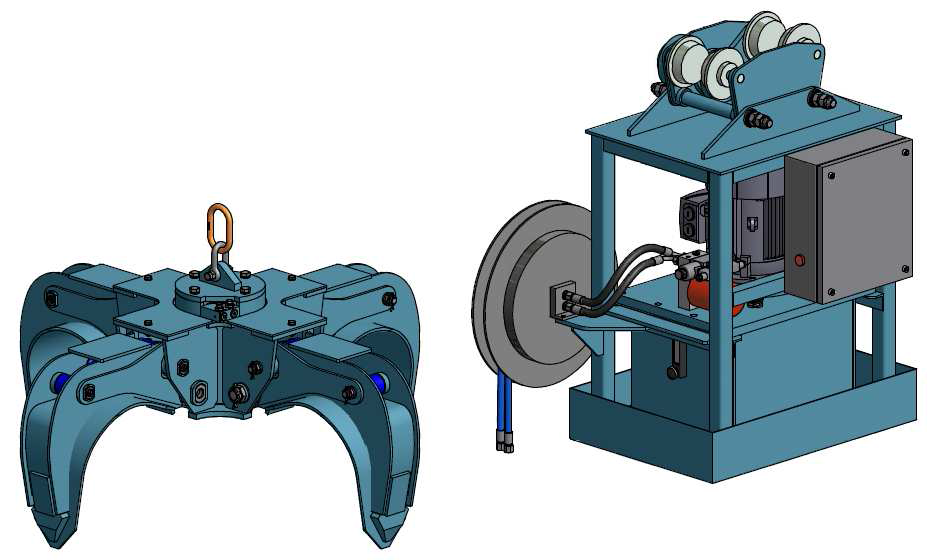

Hole set consists from light polyp grab HP30-140_P with jaw volume 140Ltr and lifting capacity 3t and from hydraulic unit with input power 7,5kW, configuration enables hanging on the crane rail from joint section. Grab is equipped with protection against opening jaws in case of an intake hydraulic line failure and connection to hydraulic unit is fixed by quick-coupling devices. Jaws profile is designed to be used for loading of specific parts from water bath. Hydraulic unit is designed as self-supporting box equipped with an oil catch container and a drum winder with 16 m long hoses. Drum is hanging on sheave no-driven truck. Main Parameters of Grab: Weight approx. 320 kg Max lift. capacity 3 t Number of jaws 4 Volume 0,13 m3 Max. pressure of hydr. circuit 160 bar Jaws clamping force 9,4 kN
