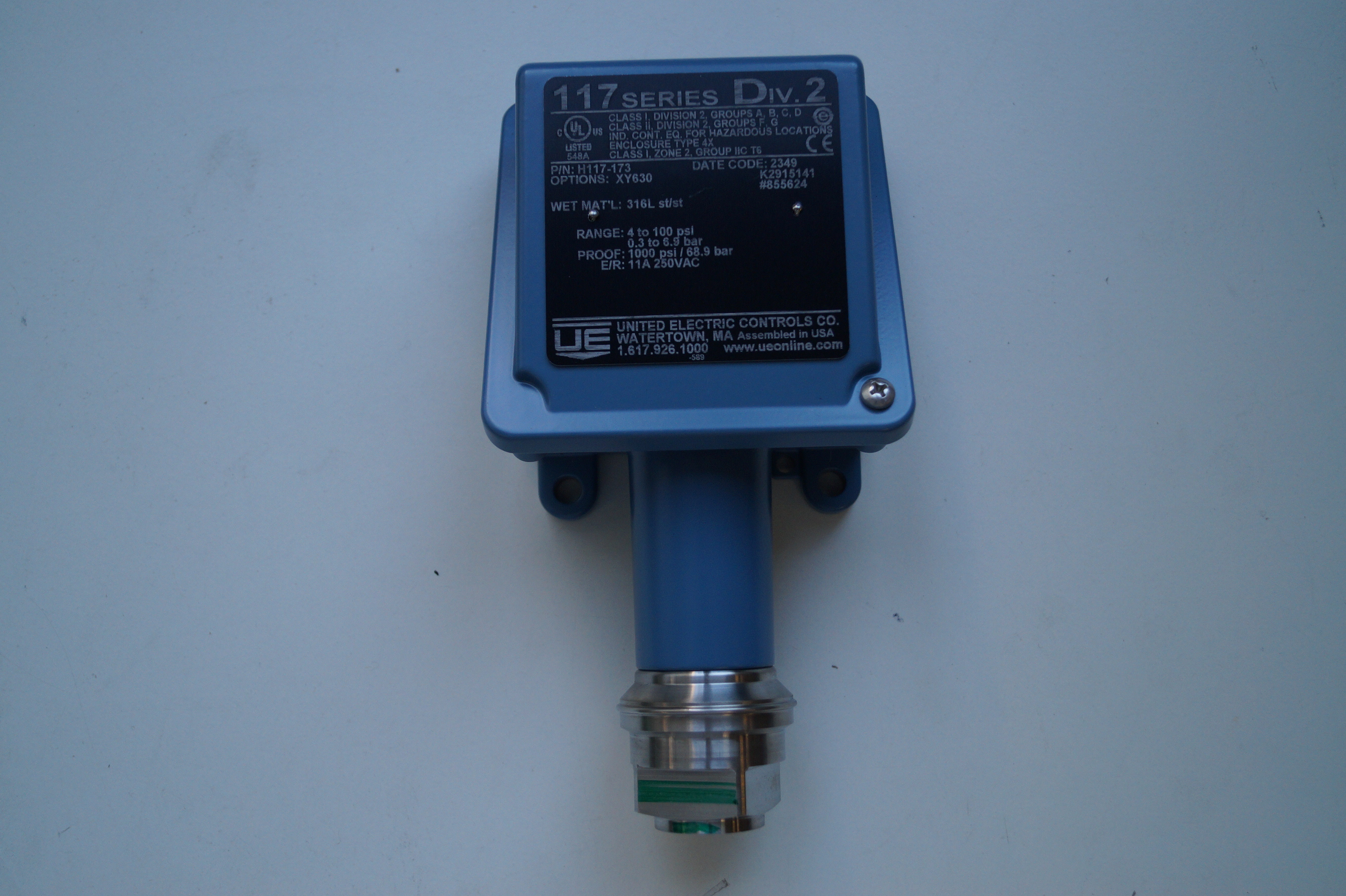

Pressure Switch, 117 Series United Electric Pressure Switch

Model: H117-173 Adjustable Set Point Range: 4 to 100 psi / 0,3 to 6,9 bar Deadband: 0.1 to 10 psi / 6,9 mbar to 0,7 bar Over Range Pressure: 500 psi / 34,5 bar Proof Pressure: 1000 psi / 68,9 bar Pressure Transducer/Sealing: Welded 316L stainless steel diaphragm Pressure Connection: 1/2” NPT (female) Enclosure: Die cast aluminum, epoxy powder coated, gasketed; captive cover screws; anodized aluminum nameplate Classification: Enclosure Type 4X Switch Output: One SPDT hermetically sealed snap action switch; switch may be wired “normally open” or “normally closed” Electrical Rating: 11 A 125/250 VAC resistive; 5 A @ 28 VDC; 1 A @ 48 VDC; 1/2 A @ 125 VDC; switch contacts gold flashed Electrical Connection: 1/2” NPT (female); two 7/8” diameter knockouts
