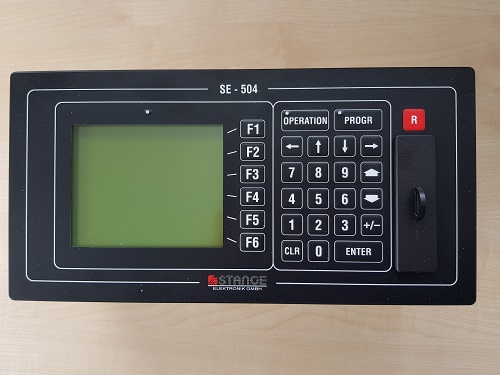

Program Controller SE-504

Hardware: 288 x 144 mm housing, depth 110mm (approx. 11,34 x 5,67 x 4,33 Inches) Power supply 115..230 V ±15% / 50..60 Hz Front panel with foil-keyboard, 28 keys, IP65, graphical LCD-Display 160 x 128 Pixel with LED lighting Serial interface RS422 (JBus), electrically isolated, for configuration and for connection of a process control system CAN interface with CANopen protocol for connection of up to 15 CAN bases (CAN-BASIS4 with 4 plug-in slots for CAN I/O modules), for up to · 48 analogue inputs · 32 analogue outputs · 200 digital inputs · 200 digital outputs Free slot for optional interface board (i.e. ProfiBus) Software: For periodic or continuous processes, 30 set-point values, 64 digital tracks, 800 segments, 50 programs, 50 process steps, 20 control zones, 20 formula (with basic arithmetic operations), 60 tolerances, 80 limit values, 200 alarms. 15 connectable CAN bases for evaluating up to 48 actual values, 32 analogue outputs, 200 digital inputs and 200 digital outputs. PLC with 1600 statements, 128 timers, 512 flags, programmable with statement list Dialogue language switchable: English, German, French (Optional: Italian, Russia, Spain Swedish, Finnish) incl. 3 memory cards SM-1288 for configuration and programs
